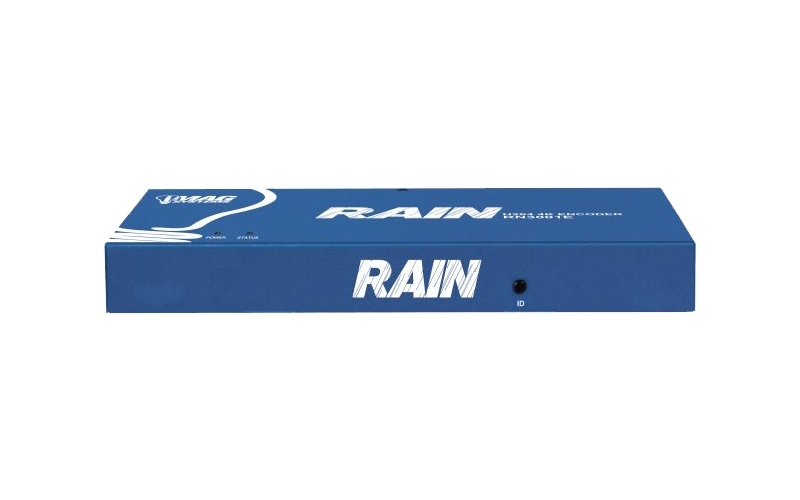

Introducing RAIN, the most Flexible AV over IP system for enterprise deployments. Utilising H.264 codec, RAIN delivers AV over IP over any existing network infrastructure thanks to it’s low bandwidth requirements of under 20Mbs per stream.

RAIN can operate in both RTP and RTSP protocols allowing software end point decoding like VLC players, but will also allow decoding by hardware devices like Roku and streaming televisions via local LAN, or even the internet.

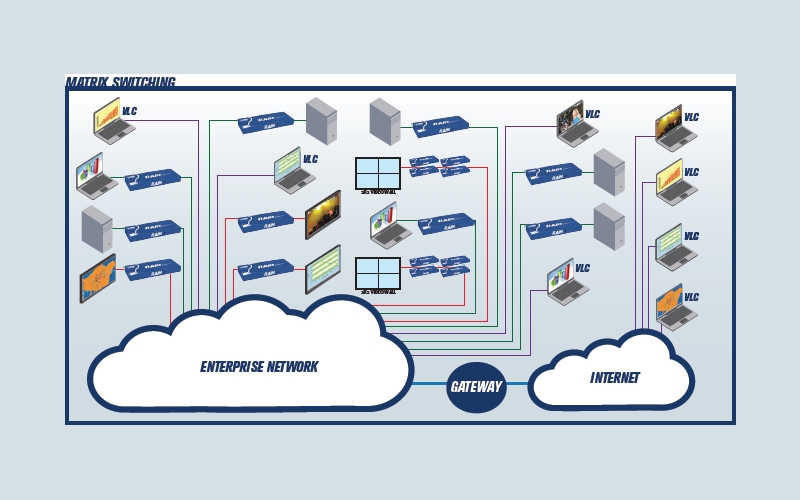

RAIN has video wall capabilities, allowing configurations up 16×16 with advanced bezel compensation. The flexibility of low bandwidth H.264 together with it’s high video performance makes it an ideal choice for hospitality and higher education environments where the effects of latency are not a factor.

Product Description

Low bandwidth H.264
– Deploy over almost any network

4K resolution
– Future proof installations

RTP and RTSP streaming
– VLC software decoding and recording

CEC control
- Take direct control of displays via HDMI connection

Technical Specifications

• Input resolutions up to 4K/30
• Output resolutions up to 4K/30
• 1Gb PoE network
• Latency 90mS to 350mS
• Bandwidth variable to 20Mbps
• Bidirectional RS-232 (all baud rates up to 115,200)
• Analog stereo audio out (Decoder)
• CEC control
• Up to 16×16 Video wall creation
• Unicast and Multicast Mode
• Video wall bezel correction
• 228 mm x 111 mm x25 mm (WxHxD)
• 0.74Kg
• 12v 1A inline power supply or PoE
• HDMI 1.4
• VLC H.264 software decoding
• Input Audio Format-
  • Encoding: Stereo LPCM/AAC
  • Sampling Rate: 43 KHz
  • Bitrate: 1.6 Mbps(LPCM), <240Kbps(AAC)
