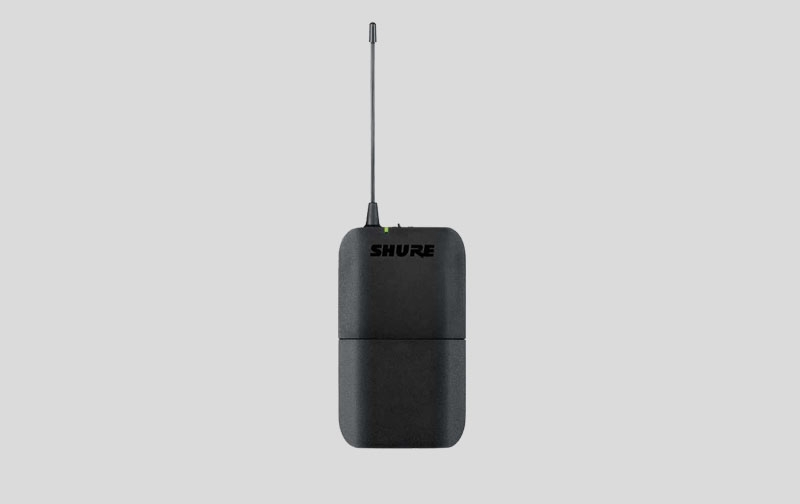

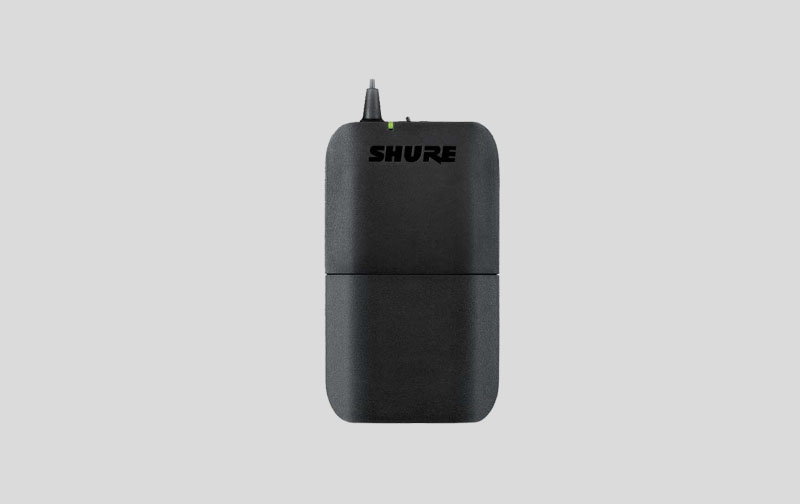

The BLX1 bodypack has a lightweight and durable design. Ergonomically designed to fit comfortably in hand, with adjustable gain control. For use with BLX Wireless systems.

Features

• Up to 14 hours of continuous use with 2 AA batteries (included).
• Up to 300 ft (100 m) transmission radius.
• Quick and easy receiver frequency matching.
• TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables.
• Toggle on/off switch.
• Adjustable gain control of 26dB (+10 to -16dB).
• Lightweight, rugged construction.

Tech Specs

• Transmitter Type: Bodypack.

Further Technical Specs

• Audio Input Level :
  • gain    max    -16 dBV maximum.
  • gain min (0 dB)    +10 dBV maximum.
• Gain Adjustment Range : 26 dB.
• Input Impedance : 1 MΩ.
• RF Transmitter Output :
  • 10 mW, typical.
  • varies by region.
• Dimensions : 110 mm x 64 mm x 21 mm (H x W x D).
• Weight : 75 g (2.6 oz.), without batteries.
• Housing : Molded ABS.
• Power Requirements : 2 LR6 AA batteries, 1.5 V, alkaline.
• Battery Life : 8 up to 14 hours (alkaline).
