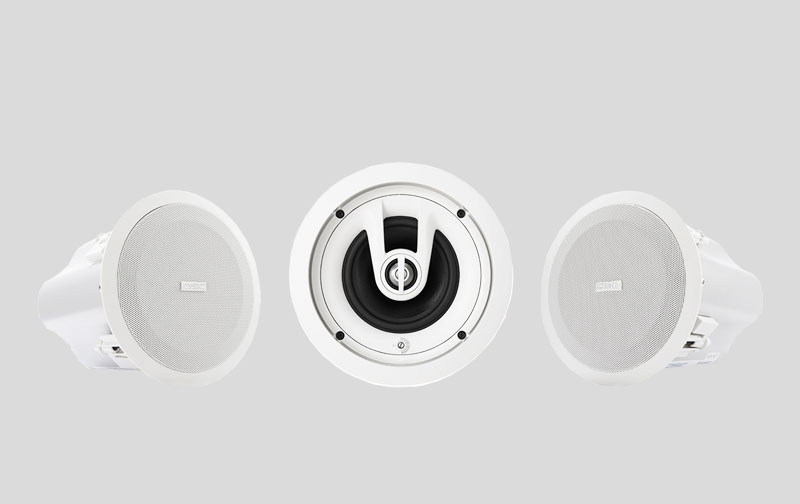

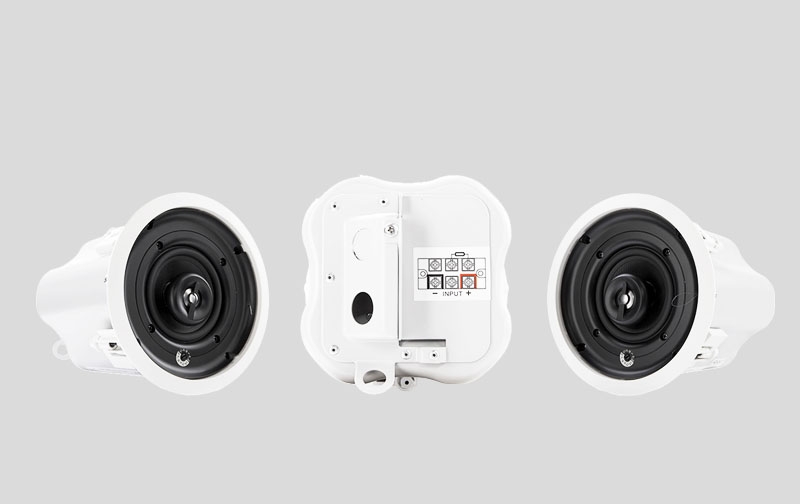

AD-Ci52T - 5.25" 2-way, 90° conical


  • Wide-Bandwidth, High-Fidelity Performance - menghasilkan kualitas suara musikal yang kaya dan rendah distorsi.
  • Menggunakan teknologi Driver yang sama dengan loudspeaker AD-S (surface mount) memberikan kemampuan Seamless Sonic Integration - memungkinkan digabungkan dengan model speaker lain dalam satu zona untuk memaksimalkan area jangkauan.
  • AD-CI52ST Employs Shallow Can - memungkinkan pemasangan di plafon dan dinding dengan arsitektural standar.
  • True High-Fidelity, 2-Way Design - speakers dilengkapi 1" titanium HF dome tweeter menghasilkan kualitas suara yang tak tertandingi dari sebuah loudspeaker plafon.
  • Paket produk sudah termasuk:
    • Dua buah loudspeaker AD-CI52T
    • Dua buah C-ring dan  tile rails
    • Dua  round grilles (warna putih, paintable)


Configuration Compact 2-way, sealed enclosure

5.25" (13 mm) Weather-resistant, low distortion fiberglass cone woofer, 25 mm voice coil, rubber surround

1" titanium dome tweeter, neodymium magnet

Frequency Range 1
Frequency Response (-6 dB)
Useable Frequency Range (-10 dB)
85 Hz to 20 kHz
65 Hz to 20 kHz
Maximum Output 2
Calculated Peak Output
Calculated Continuous Output
102 dB SPL
108 dB SPL
Nominal Impedance 8 ohms
Power Capasity 40 W (100 hours IEC)
Sensitivity 86 dB, 2.83 V, 1 m, flush mounted (2 pi)
Type Custom low distortion laminated core, wide bandwidth design
Taps 70 V: 30, 15, 7.5, 3.8 W / 100 V: 30, 15, 7.5 W / 8 ohms selected by switch
Environmental Exceeds Mil Spec 810 for humidity, salt spray and dust;
IEC 60529 IP-X3 splash rating
Agency Rating Listed UL1480, UL2043 safe for use in air handling spaces;
Transformer is Listed UL1876; Compliant BS/EN 60849 safety standards
Material Injection molded, high impact polystyrene baffle on a steel enclosure
Finish White (paintable)
Grille Painted aluminum
Connectors 4-pin Euro terminals in fire protective sub-chamber
Mounting Hardware Rails and C-ring for ceiling tile installation
Weight 7.5 lb (3.4 kg) net, each
24 lb (10.9 kg) shipping, per pair
Available Accessories AD-MR4 / AD-NC4



User Manual

Specification sheets
