| ISIS I-282H | |||
| Configuration | Compact two way, ported enclosure | ||
| Transducers Low-frequency High-frequency |
Dual 8" high power, treated paper cone, 2" voice coil, neodymium magnet. 1" exit high output compression driver, 1.7" diameter voice coil.
|
||
| Frequency Range Frequency Response Usable Frequency Range |
80 Hz to 27.7 kHz (- 6dB ) 60 Hz to 29.5 kHz (- 10dB ) |
||
| Maximum Output Calculated Peak Output Calculated Continuous Output |
125 dB SPL 119 dB SPL |
||
| Impedance | 8 ohms nominal ( 5.25 ohms minimum, 17.6 kHz, 64 ohms maximum, 2.56 kHz ) | ||
| Power Rating Continuous power handling Recommended max amp power |
450 W (8 hours IEC) 900 W RMS |
||
| Sensitivity | 93 dB, 1 m, free field | ||
| Nominal Coverage | 90°H × 60°V ( - 6 db ) / rotatable to 60°H × 90°V | ||
| Bass Loading | Ported, tuned to 60 Hz | ||
| ENCLOSURE | |||
| Material | Injection molded, weather resistant high impact polystyrene | ||
| Finish | Black | ||
| Grille | Heavy duty powder coated aluminum | ||
| Connectors | Two Neutrik Speakon NL4FC connector wired in parallel, passive / active switchtable | ||

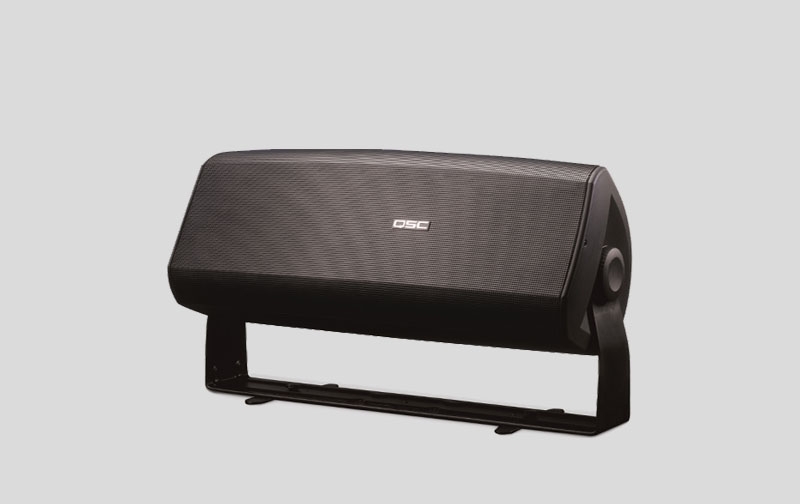

| Mounting hardware | Included : Pole Cup and Yoke Mount | ||
| Weight - Net / Shipping | 28.5 lbs ( 12.9 kg ) / 36.8 lbs ( 16.7 kg ) | ||
